2 way DN10 3/8"inch brass electric motor control ball valve with ROHS

FOB Reference Price:Get Latest Price
  • 1 - 499 Pieces
    US $23.90
  • >=500 Pieces
    US $15.90
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Power:
Power
Material:
Brass
Temperature of Media:
High Temperature
Media:
Water Gas Oil
Port Size:
3/8"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
T10-B2-C
Brand Name:
Tonhe
Application:
General
Valve size:
1/4" 3/8" 1/2" 3/4" 1" 1-1/4"
Working voltage:
DC5V, DC12V, DC24V
Wiring diagram:
CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR4-01 CR5-01 CR5-02
Actuator color:
Grey, Black or Blue color
Operating current:
Less than 80mA
Actuator torque:
2N.M
Life time:
100000 times
Sealing material:
FKM & PTFE
Liquid temperature:
2℃~90℃
certification:
EMC, LVD, ROHS, PICC, IP67,Iso9001:2008
SupplyAbility
SupplyAbility:
4500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
39*34*20CM 30pcs/carton
Port
Shanghai Ningbo
Lead Time :
300/day
Company Information

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service

 TONHE is a OEM and exporter of mini motorized shut off ball valve, proportional ball valve, wireless remote electric valve, and water leak alarm system, which are approved EMC,LVD,ROHS and SS304 valves passed NSF61-G certificated.

2 way 1/2" inch motorized brass ball valve DC5V/12V/24V flow control vavle with manual operation

2 way DN10 3/8"inch brass electric motor control ball valve with ROHS

T10-B2-C 230V
Please confirm the detail with yellow marked as follows:
the valve: 2 way or 3 way
Valve size: 1/4"~2"
Valve material: brass,SS304 or UPVC
Voltage: DC5V,DC12V,DC24V,9-35V,110-230V
Wire control methods: CR201, CR202, CR301, CR302, CR303, CR305, CR401,CR501, CR502
Screw thread: BSP or NPT
Actuator color: Grey, Black or Blue color

our-customers

Product Description

Product Specification

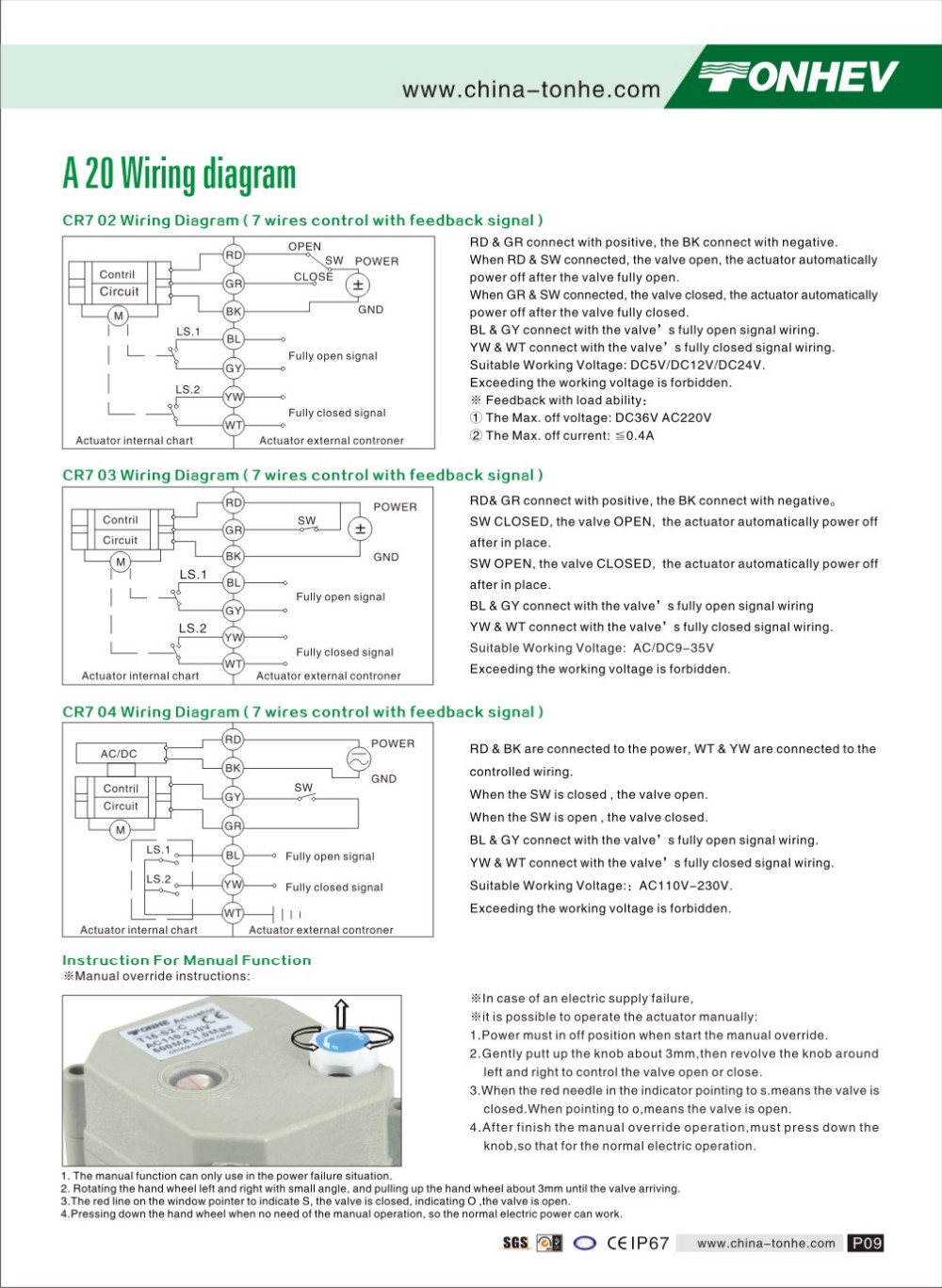

Wiring Diagram

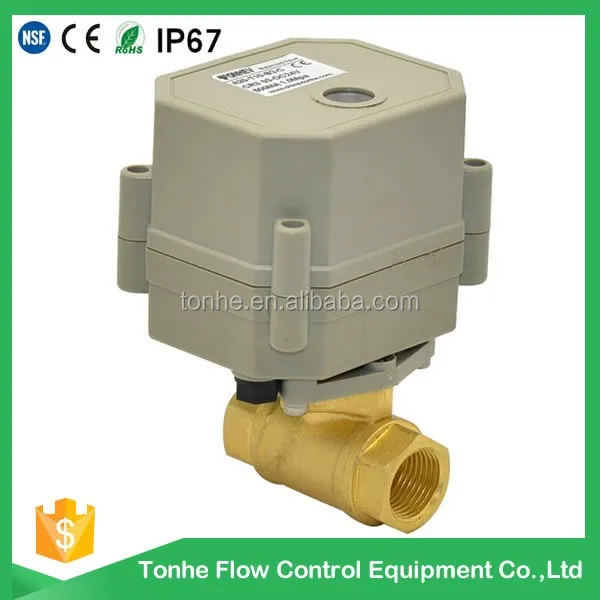

Product Photo Show

4zhang2
1413782253336_hz-fileserver-upload-02_826452

Packaging & Shipping

PackagingPP bagcarton size of foreign trade in accordance with customerrequirements



                         A20 series packaging

 2 way 1/2 Inch Electric Flow Control brass water ball valve CE/ROHS Motorized Actuator brass ball valve with Manual (T15-B2-B)
