3- way 3/4''vertical brass electric motor control ball valve with 230V voltage

FOB Reference Price:Get Latest Price
US $19-28 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Power:
electric power
Material:
Brass
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
3/4''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
T20-B3-C
Brand Name:
Tonhe
Protection Class:
IP67
certification:
CE, NSF61
Operating current:
less than 80mA
Actuator torque:
2N.M
actuator control:
motori power controlled water ball valve
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/case
30pcs/carton
Port
Ningbo
Lead Time :
3-20days

Three way electric actuator power control water ball valve, vertical T type , AC100-240V,AC/DC9-34V/DC12V/DC5V,CE, IP67,size from 1/2''to 1''in brass and nickel plated brass . reduced port ,5s operating time , operating life 100000 circles .

Technical Parameters:

Product size NPT/BSP 1/4" NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" NPT/BSP 1 1/4'' (Optional )

Maximum working pressure 1.3 MPa

Circulation medium Fluid, air

Rated voltage DC5V/ DC12V DC24V AC/DC9-24V AC/DC-35VAC110-230V (Optional )

Wiring control methods CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR4-01 CR5-01 CR5-02 CR7-01 CR7-02 CR7-04(Optional)

Working current ≤500MA

Open/close time ≤5S/≤9S(Optional)

Life time 70000 times

Valve Body material Brass Nickel plated Brass 304 Stainless steel (Optional)

Actuator material Engineering Plastics

Sealing material EPDM & PTFE

Actuator rotation 90°

Max. torque force 2 Nm/4Nm(Optional)

Cable Length 0.5m,1.5m(Optional)

Environment temperature -15℃~50℃

Liquid temperature 2℃~90℃

Manual override Yes No(Optional)

Indicator Yes No (Optional)

Protection class IP67

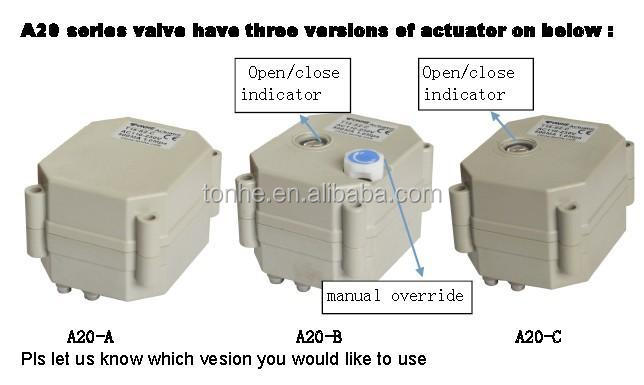

Valve can with manual override and indicator :

valve actuator.jpg

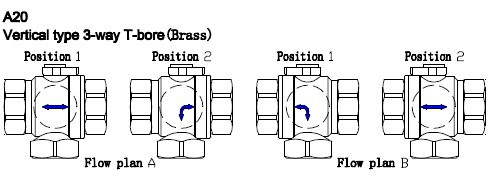

Valve flow direction on below for selection :

3 way brass valve flow direction.jpg

Company certification:




When you inquiry the valve, pls let us know below valve detail diameter :

1, valve size , material ,

2, working voltage ,

3, wire control

4, valve manual override , open indicator

5, valve flow direction

6,cable length

then Nadine will give you a reaonable price , thanks .
