Low Working Current 1/2'' Brass Motorized Ball valve For Water Saving Irrigation(T15-B2-A)

FOB Reference Price:Get Latest Price
6 Piece/Pieces 30pcs/carton (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Power:
Power
Material:
Brass
Temperature of Media:
High Temperature
Media:
Water Gas Oil
Port Size:
1/2"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
T15-B2-A
Brand Name:
Tonhe
certification:
CE NSF61-G
Actuator torque:
2N.M
Protection Class:
IP67
Operating current:
Less than 80mA
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
39*34*20CM 30pcs/carton
Port
Shanghai Ningbo

Specifications

1. Mini size for small equipment
2. Easy to install, all metel gear
3.Long life time
4.Good sealing
5.Low working current

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service



TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS304 valve approved NSF61 international certification.Our company also approved SGS ISO9001 in 2013 .

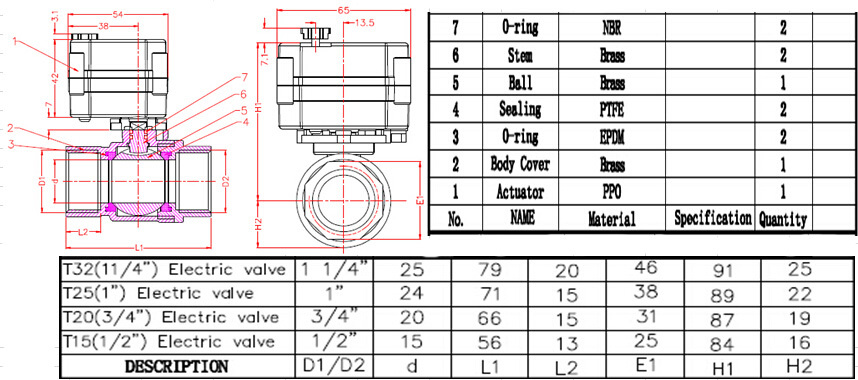

Dimension Figure

.jpg

Product Model Definition











For occasions

1 IC card water meter, heat meter.

2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection







Technical Parameters:



Product size : 1/2" (NPT/BSP 1/4" 3/8" 3/4'' 1" 1-1/4'' ) Optional



Maximum working pressure : 1.0 MPa



Circulation medium : Fluid, air



Rated voltage : DC5V DC12V DC24V AC/DC9-24V AC/DC-35V  Optional



Wiring control methods : CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR5-01 CR7-01 CR7-02  Optional



Working current :  ≤500MA



Open/close time :  ≤5S



Life time : 70000 times



Valve Body material :  Brass (Nickel plated Brass ,304 Stainless steel) Optional



Actuator material :Engineering Plastics



Sealing material: EPDM & PTFE



Actuator rotation:90°



Max. torque force:2 Nm



Cable Length:0.5m,1.5m (Optional)



Environment temperature: -15℃~50℃



Liquid temperature: 2℃~90℃



Manual operation: No



Indicator: No



Protection class: IP67
