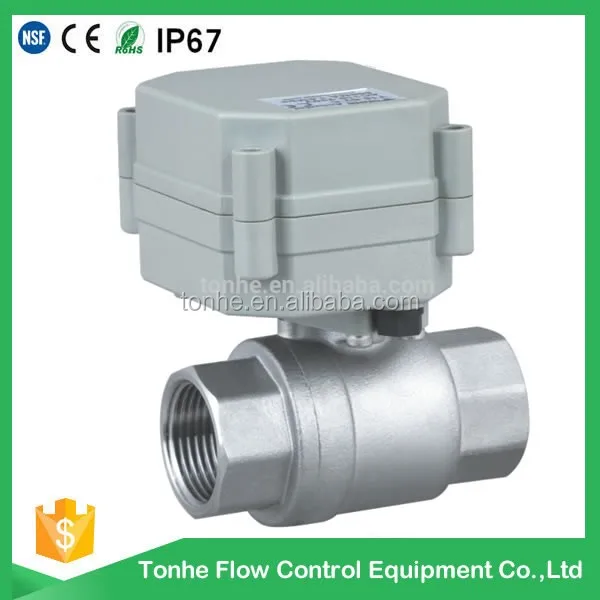

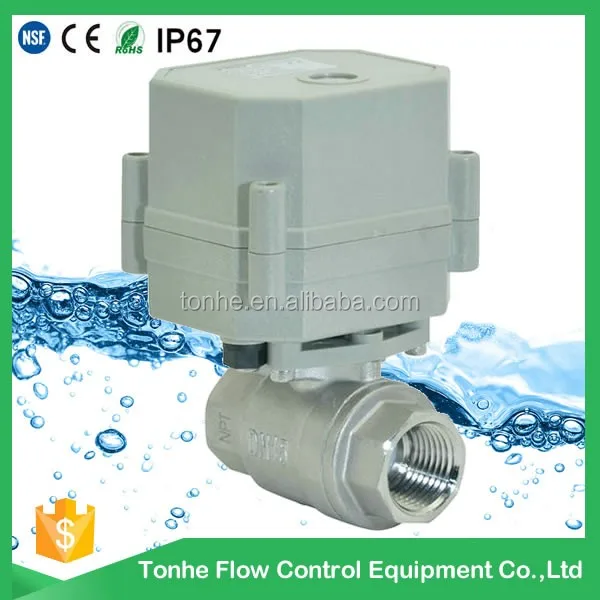

2 way NSF61 SS304 Electric Ball valve 5V/12V/24V (T15-S2-A)

FOB Reference Price:Get Latest Price
  • 1 - 499 Pieces
    $26.00
  • >=500 Pieces
    $22.00
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 Negotiable
Samples - $28.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tonhe, OEM
Model Number:
T15-S2-A
Application:
General
Material:
Stainless Steel
Temperature of Media:
High Temperature
Pressure:
Medium Pressure
Power:
Power
Media:
Water Gas Oil
Port Size:
1/2"
Structure:
Ball
Product name:
NSF61-G Electric Stainless Ball valve OEM actuator valve
Voltage:
DC5V,DC12V,DC24V,9-35V,110-230V
Wire control diagram:
CR201, CR202, CR301, CR302, CR303, CR305, CR401,CR501, CR502
Actuator torque:
2N.m
Protection Class:
IP67
Operating current:
Less than 500mA
Working pressure:
0-10bar
Cycle life:
100000 times
open/close time:
less than 5 second
certification:
NSF EMC LVD
Packaging & Delivery
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service



TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS304 valve approved NSF61 international certification.Our company also approved SGS ISO9001 in 2013 .




If you want to buy, we need to confirm the detail as follows:
the valve: 2 way or 3 way
Valve size: 1/4"~2"
Valve material: brass,SS304 or UPVC
Voltage: DC5V,DC12V,DC24V,9-35V,110-230V
Wire control methods: CR201, CR202, CR301, CR302, CR303, CR305, CR401,CR501, CR502
Screw thread: BSP or NPT female thread
Cable length: 0.5 meter or 1.5 meter
Color of actuator: Grey, Black or Blue







Dimension Figure



Product Model Definition



For occasions

1 IC card water meter, heat meter.

2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection





Our service:

1.We have full stock and can deliver within short time.



2.OEM and ODM order are accepted, Any kind of logo printing or design are available.



3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.



4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.



After you choose:



1. We will count cheapest shipping cost and make invoice to you at once.



2. Check quality again, then send out to you at 1-2 working day after your payment



3. Email you the tracking no., and help to chase the parcels until it arrive you.



After-sale service



1.We are very glad that customers give us some suggestion for price and products.



2.If you have any question,please contact us freely by E-mail or Telephone.
