2 way water leakage alarm electric control valve shut off valve (W20-B2-C)

FOB Reference Price:Get Latest Price
1 Piece/Pieces 30pcs/carton (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Power:
Power
Material:
Brass
Temperature of Media:
High Temperature
Media:
Water Gas Oil
Port Size:
3/4"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
W20-B2-C
Brand Name:
Tonhe
certification:
CE
Actuator torque:
4N.M
Protection Class:
IP67
Operating current:
Less than 80mA
name:
Water Leak Protection
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
39*34*20CM 30pcs/carton
Port
Shanghai Ningbo
Lead Time :
100pcs/day

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service

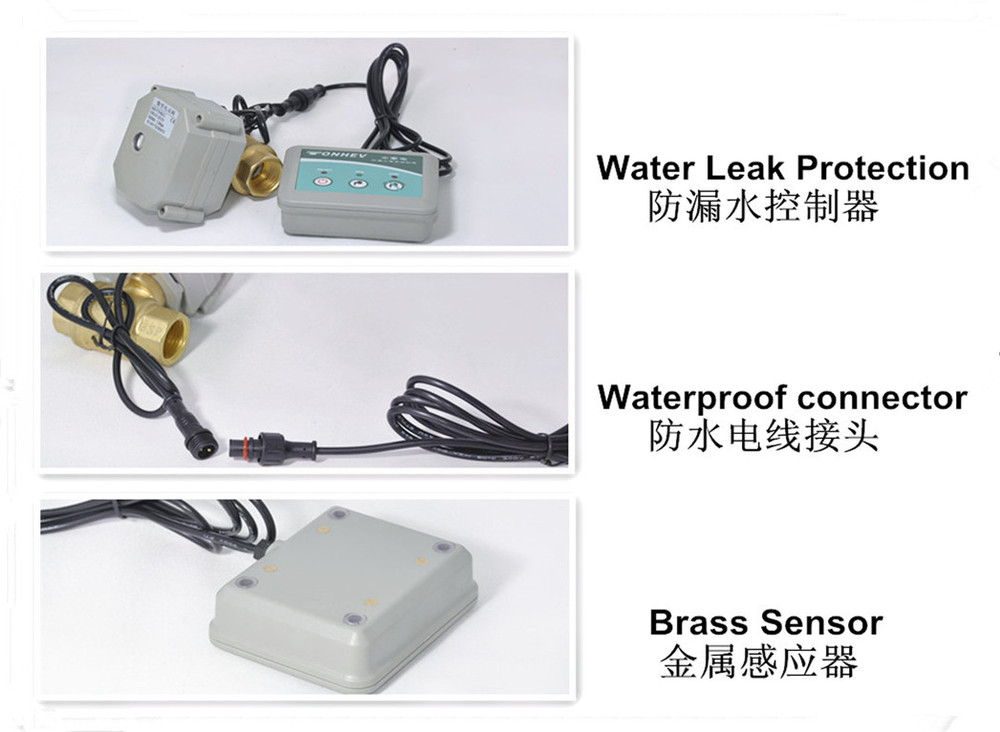

                                Water Leak Intelligent Controller Manual



Functions and Features

Valves close automatically when leakage, and alarm.

* Power Supply with 2 AA, 5 batteries.

Automatically alarm when power is lower, and valve close eight hours later

* Controller panel has three keys ( power key, valve on key , valve off key ) and three indicator lights ( power indicator, on - off indicator)

* Easy to install.

* Suitable for water purifiers, protective faucet, washing machine, filter or water softener and other equipment as leakage protection.

* Sensing controller is fully sealed, moisture-proof design, improve the life of battery and stability of the product .



Technical parameters

Operating voltage: 3VDC (2 . AA, 5 batteries)

Operating Current: Typically 0.015mA, max 300.0mA

Cable length: 1.0M

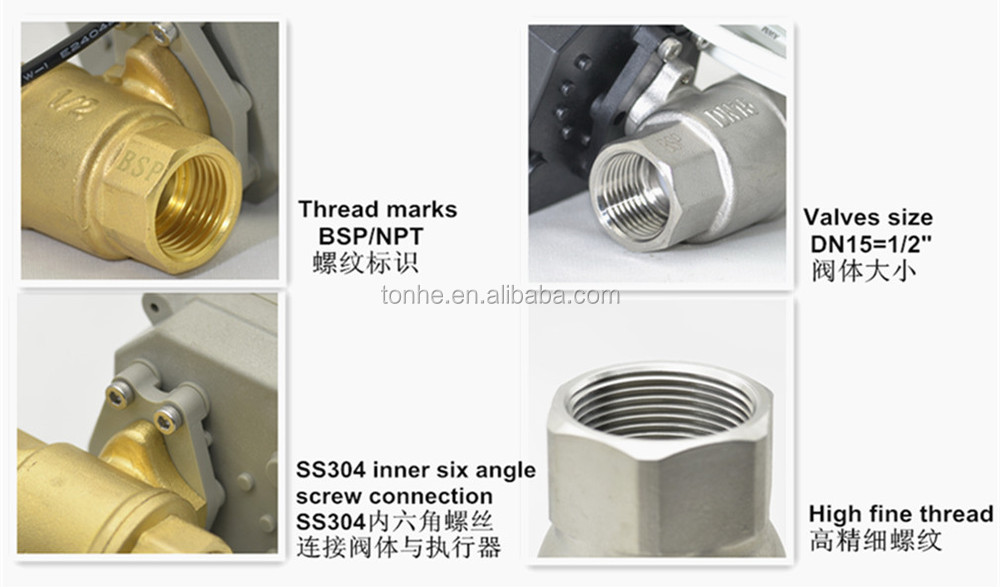

Connector Spec:  "(BSP/NPT 1/4" 3/8" 3/4" 1")   Optional

Valve Body material : Brass  (  Stainless steel 304  , Nickel plated Brass ) Optional

Ambient temperature: -20℃ to 80℃

Working pressure: 1.0Mpa

Leakage detection:  Put the metal face of sensor controller down the place most likely leaky places, such as near the water purifier




.jpg

Packaging & Shipping

PackagingPP bagcarton size of foreign trade in accordance with customerrequirements



                         A20 series packaging

packing .jpg
