DN8 1/4'' 2Way min electric actuated valves for water treatment DC5V/12V/24V

FOB Reference Price:Get Latest Price
US $18.5-27 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Power:
electric
Material:
Brass
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
DN8 1/4''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
T8-B2-B
Brand Name:
TONHE
Application:
General
Torque:
2 N.m
Protection class:
IP67
Certification:
CE, NSF61
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/case, 30pcs/carton
Port
Shanghai / Ningbo
Lead Time :
5-20DAYS


Company Information



Business philosophy

                            —— Sincerity , Quality assurance, Creative

                            —— Good Customer service

 TONHE is a OEM and exporter of mini motorized shut off ball valve, proportional ball valve, wireless remote electric valve, and water leak alarm system, which are approved EMC,LVD,ROHS and SS304 valves passed NSF61-G certificated.



Product Description



Model: T8-B2-B

Size: 1/4''

Internal diameter: 8mm

Rated Voltage: DC5V, DC12V, DC24V, AC/DC9-24V, AC110-230V (pls confirm the voltage)

Wiring diagram: CR201/CR202/CR301/CR302/CR303/CR304/CR305/CR306/CR501/CR502/CR701/CR702/CR703/CR705/CR706(OPTIONAL)

Working current: less than 80MA

Open/close time: less than 5S

Life time: 70000 times

Manual override: YES

Indicator: YES

Max. working pressure: 1.0MPa

Actuator material: Engineering Plastics

Sealing material: FKM & PTFE

Body: BRASS

Max. torque force: 2 Nm

Cable length: 50cm

Actuator rotation: 90 degree

Liquid temperature: 2 Celsius-90 Celsius

Environment temperature: -15 Celsius-50 Celsius

Protection class: IP67

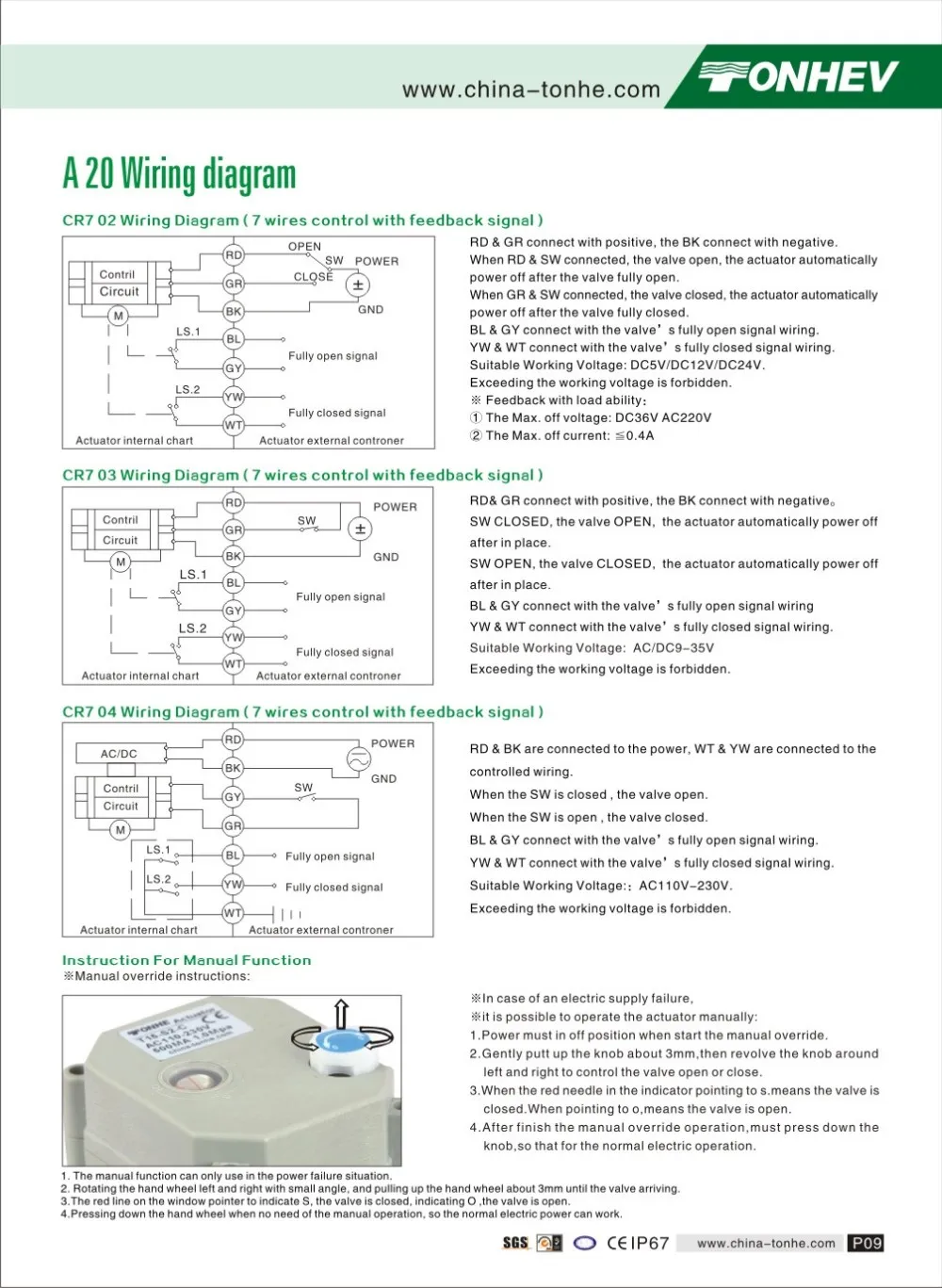

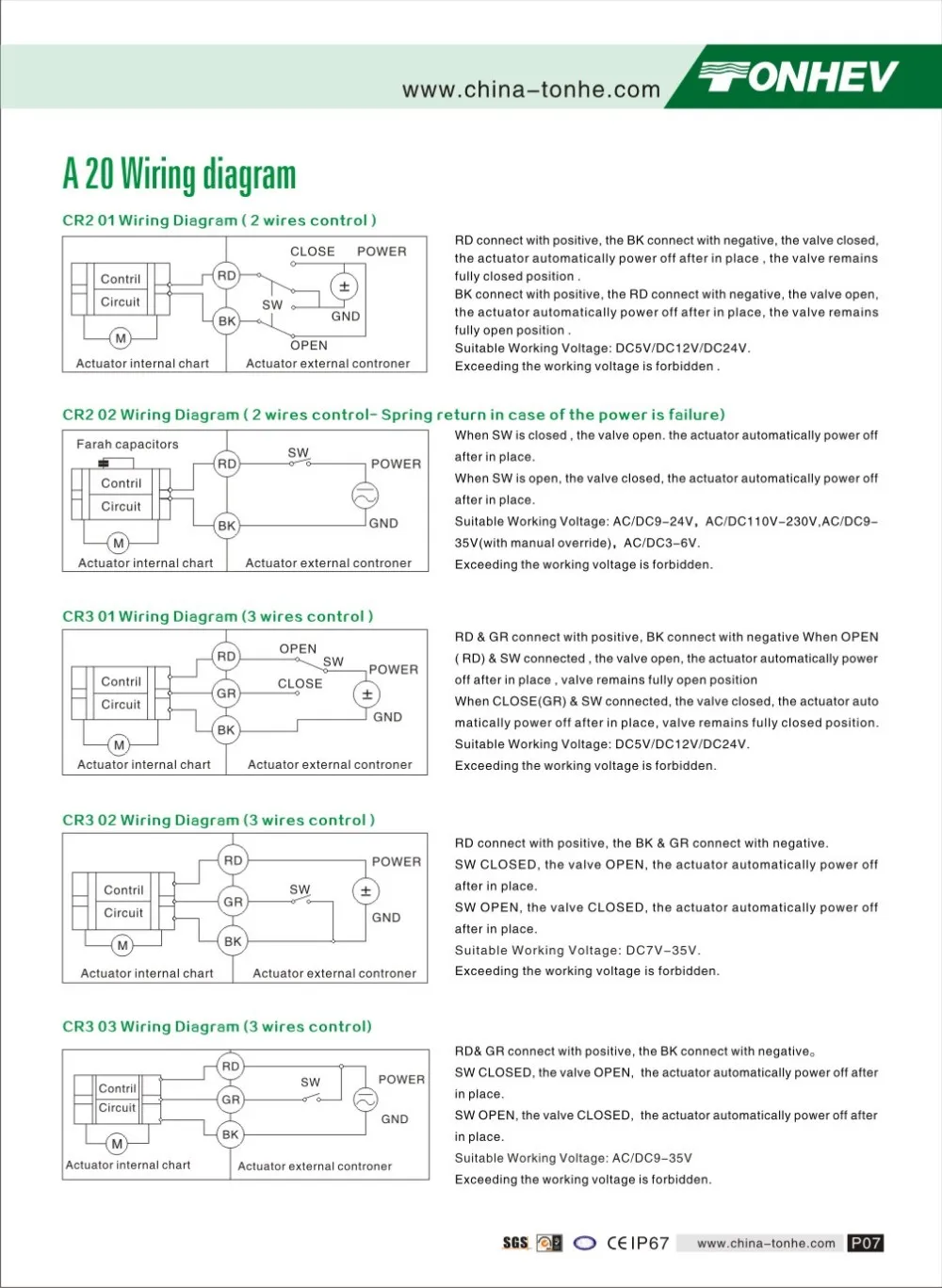

Wiring diagram:
10
111205


123.jpgPls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the following technical details :

1, valve size , valve materail

2, working voltage

3, wiring diagram

4, select manual override & indicator ( yes or no)

5, actuator cable length



Production Line:

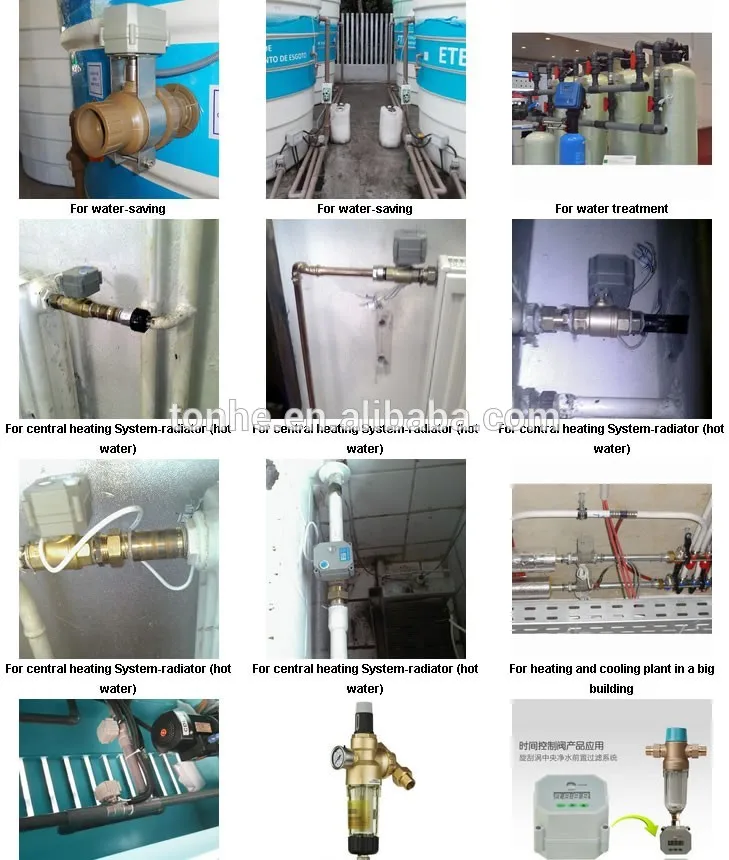

Application :

IC card meters, heat energy meters, air-warm valve.

Heating & Cooling HAVC systme

Water equipments, auto-control water system, industrial mini auto equipment..

Irrigation equipment

Drink water equipment.

Leak detection & water shut off system
