2016 OEM ODM CE RoSH plastic PVC electric actuator ball valve 3/4" wholesale

FOB Reference Price:Get Latest Price
  • 1 - 999 Pieces
    US $70.00
  • >=1000 Pieces
    US $63.00
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
Stainless Steel
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
DN20 3/4"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
pvc ball valve
Brand Name:
Tonhe
Application:
General
Type:
Normal Colse
Product name:
stainless steel 3 way ball valves
Certificate:
CE, NSF61,Rohs, IP67
Body material:
PVC
Color:
Customer's Request
Torque:
10 N.m
Voltage:
DC12V DC24V AC110V AC220V
Working current:
≤500MA
Open/close time:
≤5 Sec
Seal Material:
EPDM & PTFE
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
39*34*20CM 10pcs/carton
Port
ningbo
Lead Time :
Shipped in 3 days after payment
Product Description

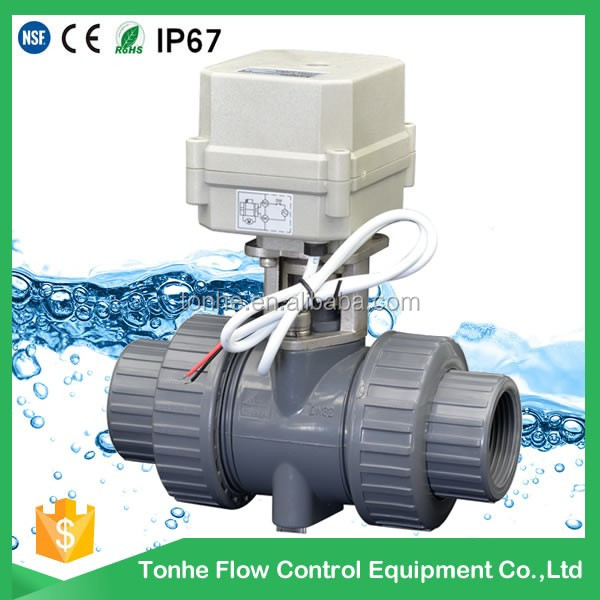

Description of  PVC electric actuator ball valve 3/4"

Size  NPT/BSP 1/2",  NPT/BSP 3/4",  NPT/BSP 1" (Optional)
Material PVC
Fields of applications  Fluid, Air
Maximum working pressure 1.0MPa
Rated Voltage DC12V, DC24, AC/DC9-35V, AC110-230V(Optional)
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment



Technical Parameters:

Product sizeNPT/BSP 1/2",  NPT/BSP 3/4",  NPT/BSP 1" (Optional)
Maximum working pressure1.0MPa
Circulation mediumFluid, Air
Rated voltageDC12V, DC24, AC/DC9-35V, AC110-230V(Optional)

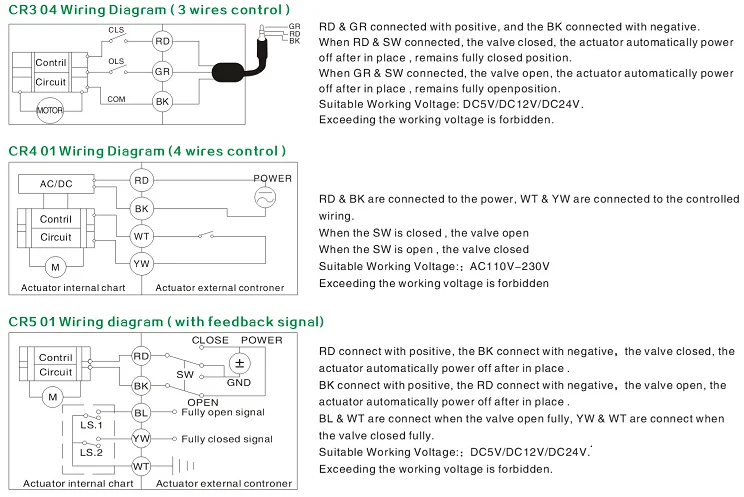

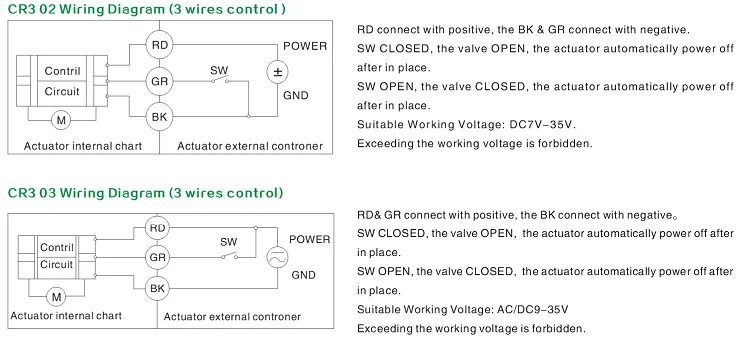

Wiring control methods

CR2-01, CR2-02 , CR3-03, CR4-01, CR5-01,

 CR5-02, CR7-03, CR7-04 (Optional)

Working current≤ 800MA
Open/close time≤ 15 Sec
Life time70000 times
Valve Body materialPVC
Actuator materialEngineering Plastics
Sealing materialEPDM & PTFE
Actuator rotation90°
Max. torque force10 Nm
Cable Length0.5m,1.5m (Optional)
Environment temperature-15℃~50℃
Liquid temperature2℃~90℃
Manual overrideNO
IndicatorYes
Protection classIP67



 (A100-T20-P2-C)





Design Features

1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.

2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance.


123
Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


title-service

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


title-company

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


company-detail


title-certification
certification


our-customers

Packaging & Shipping

 packaging

HTB1y.3JGVXXXXa.aXXXq6xXFXXXt



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
