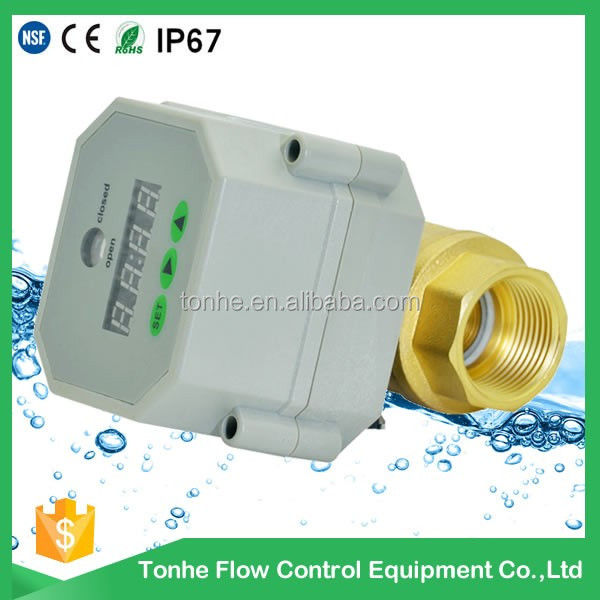

3/4'' brass ball structure and water media drain valve with timer,stop and drain valve

FOB Reference Price:Get Latest Price
  • 1 - 999 Pieces
    US $35.00
  • >=1000 Pieces
    US $30.00
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
Brass
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
drain valve 3/4"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
A20-S25-S2-C drain valve
Brand Name:
Tonhe or OEM
Application:
General
Type:
Normal Colse
Product name:
drain valve
Certificate:
CE, NSF61,Rohs, IP67
Body material:
brass
Color:
Customer's Request
Torque:
2N.M
Voltage:
DC/AC9-24V , AC110V-230V(Optional)
Working current:
≤500MA
Open/close time:
≤7 Sec
Seal Material:
EPDM & PTFE
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/case, 30pcs/carton
Port
ningbo
Lead Time :
Shipped in 3 days after payment
Product Description

brass ball structure and water media drain valve with timer,stop and drain valve

Size

NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" NPT/BSP 1 1/4''

(Optional )

Material Brass
Fields of applications Water
Maximum working pressure 1.0MPa
Rated Voltage AC/DC9-24V ,AC110-230V (Optional )
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment



Technical Parameters:



Product sizeNPT/BSP 1/2",  NPT/BSP 3/4",  NPT/BSP 1"  (Optional)
Max working pressure1.5 MPa
Circulation mediumFluid, Air
Rated voltageAC/DC9-24V, AC110-230V (Optional)

Working current≤ 500MA
Open/close time≤ 7 Sec
Life time70,000 times
Valve Body materialBrass, Nickel plated Brass, 304/306 Stainless steel(Optional)
Actuator materialEngineering Plastics
Sealing materialEPDM & PTFE
Actuator rotation90°
Max. torque force4 N.M
Cable Length0.5m,1.5m(Optional)
Environment temperature-15℃~50℃
Liquid temperature2℃~90℃
Manual overrideNo
IndicatorYes
Protection classIP67
Time control range

0 H : 0M :0S --99 H 59 M 59 S





Product application :



Economic Mini Motorized Ball Valve in 2 or 3 way

Timer Control Motorized Ball Valve in Grey or Black housing

Water Leak Alarm & Automatic shut off system



Auto drain & Water cooling system

Electric brewing system

Heating & Cooling HAVC system

Water cooling bleed system

Rain water harvesting

Solar heating,undefloor heating

Irrigation system

Leak detection & water shut off system

Water saving system

And some other automatic control system.....






 S20-B2-C01






Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


title-service

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


title-company

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


company-detail
production line

title-certification
certification


our-customers

Packaging & Shipping

 packaging

HTB1y.3JGVXXXXa.aXXXq6xXFXXXt



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
