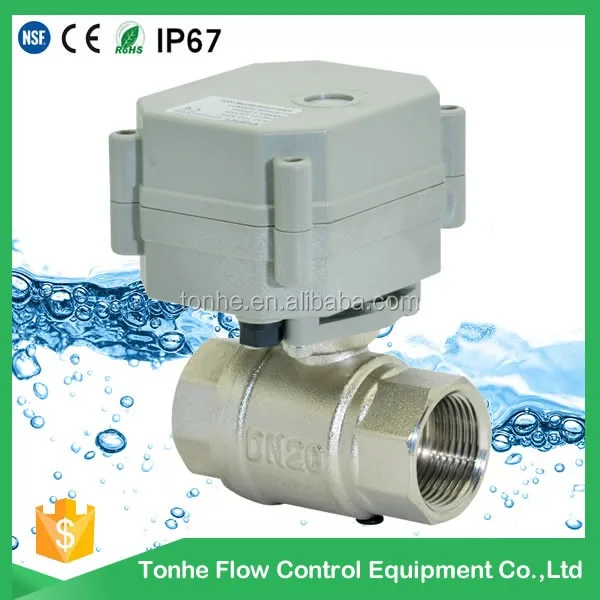

2016 CE nickel plated brass ball valve, 12v electric actuator price (T20-N2-C)

FOB Reference Price:Get Latest Price
  • 1 - 499 Pieces
    US $28.00
  • >=500 Pieces
    US $26.00
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
brass nickel plated
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
electric actuator 3/4"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
electric actuator
Brand Name:
Tonhe or OEM
Application:
General
Type:
Normal Colse
Product name:
brass nickel plated 12v electric actuator price
Certificate:
CE, NSF61,Rohs, IP67
Body material:
brass
Color:
Customer's Request
Torque:
2N.M
Voltage:
DC5V, DC12V, DC24, DC/AC9-35V(Optional)
Working current:
≤80MA
Open/close time:
≤5 Sec
Seal Material:
EPDM & PTFE
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/case, 30pcs/carton
Port
ningbo
Lead Time :
Shipped in 3 days after payment
Product Description

  2016 CE nickel plated brass ball valve, 12v electric actuator price (T20-N2-C) D

Size  NPT/BSP 1/4" NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" NPT/BSP 1 1/4'' (Optional )

Material  nickel plated Brass
Fields of applications Water
Maximum working pressure 1.0MPa
Rated VoltageDC5V/DC12V/DC24V (pls confirm the voltage)
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment



Technical Parameters:

Model: T20-B2-CR201-C

Size: 3/4''

Internal diameter: 20mm

Rated Voltage: DC5V/DC12V/DC24V (pls confirm the voltage)

Working current: less than 80MA

Open/close time: less than 5S

Wiring control: CR2-01

Life time: 100000 times

Manual override: NO

Indicator: YES

Max. working pressure: 1.0MPa

Actuator material: Engineering Plastics

Sealing material:EPDM & PTFE

Body: BRASS

Max. torque force: 2 Nm

Cable length: 50cm

Actuator rotation: 90 degree

Liquid temperature: 2 Celsius-90 Celsius

Environment temperature: -15 Celsius-50 Celsius

Protection class: IP67





 T20-N2-C





Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


title-service

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


title-company

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


company-detail
production line

title-certification
certification


our-customers

Packaging & Shipping

 packaging

HTB1y.3JGVXXXXa.aXXXq6xXFXXXt



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
