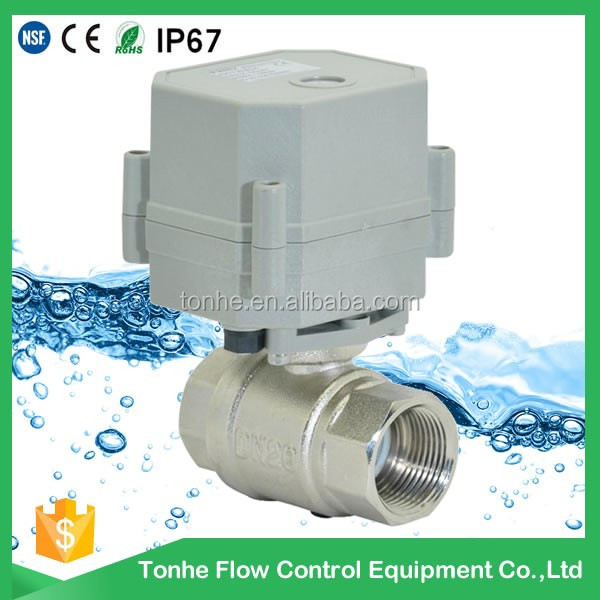

Tonhe DN20 AC230V NSF61, auto brass nickel plated electric water shut off valve

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    US $28.00
  • >=50 Pieces
    US $26.50
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
brass nickel plated
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
DN20 3/4''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
electric water shut off valve
Brand Name:
Tonhe
Application:
General
Type:
Normal Colse
Product name:
DN20 brass nickel plated electric water shut off valve
Certificate:
CE, NSF61,Rohs, IP67
Body material:
brass nickel plated
Color:
Customer's Request
Torque:
2N.M/4N.M
Voltage:
AC/DC9-24V AC/DC-35VAC110-230V (Optional )
Working current:
≤500MA
Open/close time:
≤5S/≤9S(Optional)
Seal Material:
EPDM & PTFE
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/case, 30pcs/carton
Port
ningbo
Lead Time :
Shipped in 3 days after payment
Product Description

DN20 AC230V NSF61, auto brass nickel plated electric water shut off valve
Tonhev 2 way fullport stainless steel ball valve, with different wire control , DC5V/DC12/VDC24V/AC100-24V valve, CE ,IP67 , meatal gears in valve actautor


Technical Parameters:

Product size NPT/BSP 1/4" NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" NPT/BSP 1 1/4'' (Optional )

Maximum working pressure 1.3 MPa

Circulation medium Fluid, air

Rated voltage  AC/DC9-24V AC/DC-35VAC110-230V (Optional )

Wiring control methods CR2-02CR3-03  CR4-01 CR5-02 CR7-01 CR7-02 CR7-04(Optional)

Working current ≤500MA

Open/close time ≤5S/≤9S(Optional)

Life time 100000 times

Valve Body  Nickel plated Brass(Optional)

Actuator material Engineering Plastics

Sealing material EPDM & PTFE

Actuator rotation 90°

Max. torque force 2 Nm/4Nm(Optional)

Cable Length 0.5m,1.5m(Optional)

Environment temperature -15℃~50℃

Liquid temperature 2℃~90℃

Manual override No

Indicator Yes

Protection class IP67



Valve can with manual override and indicator :



 T20-N2-C-230V





Detailed information









Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


title-service

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


title-company

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


company-detail


title-certification
certification


our-customers

Packaging & Shipping

 packaging

HTB1y.3JGVXXXXa.aXXXq6xXFXXXt



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
