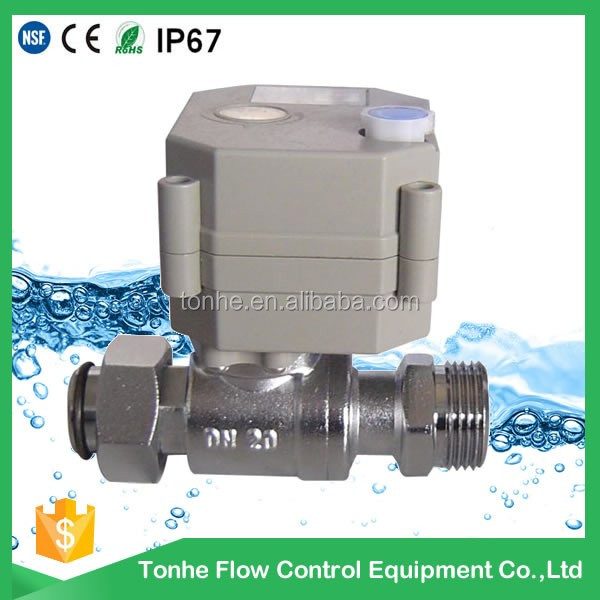

2016 OEM DN20 nickel plated brass motorized ball valve pn20 cw617n wholesale

FOB Reference Price:Get Latest Price
US $24.6-25 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
brass nickel plating
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
DN20 3/4''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
motorized ball valve DN20
Brand Name:
Tonhe
Application:
General
Type:
Normal Colse
Product name:
DN20 nickel plated brass motorized ball valve pn20 cw617n
Certificate:
CE, NSF61,Rohs, IP67
Body material:
brass nickel plating
Color:
Customer's Request
Torque:
2 N.m
Voltage:
DC5V/DC12V/DC24V
Working current:
≤80MA
Open/close time:
≤5 Sec
Seal Material:
EPDM & PTFE
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/case, 30pcs/carton
Port
ningbo
Lead Time :
Shipped in 3 days after payment
Product Description



Description of   DN20 nickel plated brass motorized ball valve pn20 cw617n wholesale

Size  1/2"
Material brass nickel plating
Fields of applications Water
Maximum working pressure 1.0MPa
Rated VoltageDC5V/DC12V/DC24V (pls confirm the voltage)
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment



Technical Parameters:

Model: T20-N2-B-CR201

Size: 3/4''

Internal diameter: 20mm

Rated Voltage: DC5V/DC12V/DC24V (pls confirm the voltage)

Working current: less than 80MA

Open/close time: less than 5S

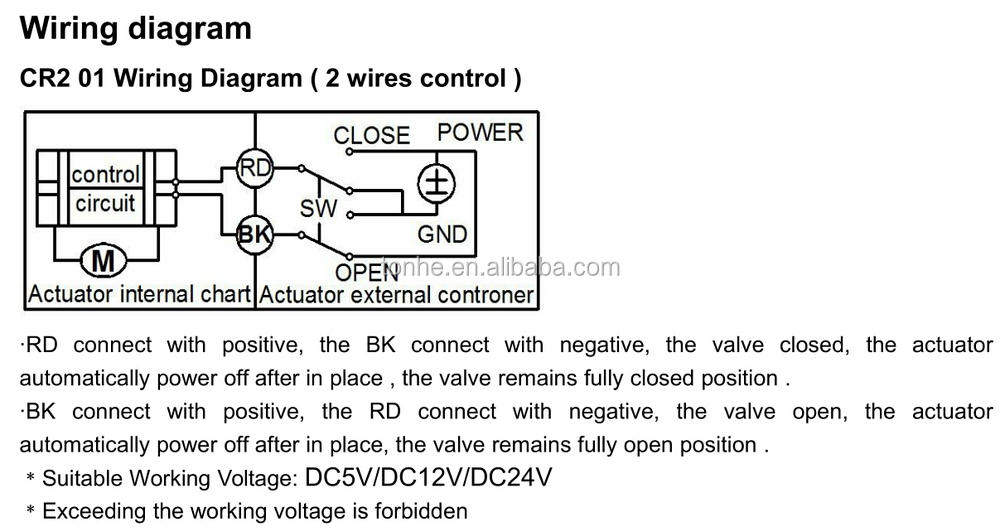

Wiring control: CR2-01

Life time: 70000 times

Manual override: YES

Indicator: YES

Max. working pressure: 1.0MPa

Actuator material: Engineering Plastics

Sealing material:EPDM & PTFE

Body: Nickel plated Brass

Max. torque force: 2 Nm

Cable length: 50cm

Actuator rotation: 90 degree

Liquid temperature: 2 Celsius-90 Celsius

Environment temperature: -15 Celsius-50 Celsius

Protection class: IP67

 T20-N2-B









Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length
