DN15 DN20 3-way Brass ball valve DC5V/12V/24V electric motor control valve

FOB Reference Price:Get Latest Price
US $30-35 / Pieces | 100 Piece/Pieces (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 11 - 50 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 10
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 2
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 61% - 70%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Tonhe
Model Number:
3 way ball valves
Application:
General
Material:
Brass
Temperature of Media:
Normal Temperature
Pressure:
Medium Pressure
Power:
Manual
Media:
Water
Port Size:
1'' ,3/4'',1/2''
Structure:
Ball
Product name:
3-way motorized valve
Certificate:
CE, NSF61,Rohs, IP67
Body material:
Brass
Color:
Customer's Request
Torque:
2 N.m
Voltage:
DC5V/DC12V/DC24V
Working current:
≤80MA
Open/close time:
≤5 Sec
Seal Material:
FKM & PTFE
Flow Structure:
Horizontal type
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10 piece/Carton
Port
Ningbo
Lead Time :
Shipped in 5 days after payment
Product Description



3-Way Motorized Brass Ball Valve , horizontal L type / T type, different flow direction, with open or closed indicator , IP67,CE ,  ,compact size 1/2'' -1'' , metal geal , PPO actuator housing , 5-7S operating time , operatiing life 70000 circles .

Technical Parameters:

Product size NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" Optional )

Maximum working pressure 1.3 MPa

Circulation medium Fluid, air

Rated voltage DC5V,DC12V,DC24V,AC/DC9-35V,AC110-230V (Optional )

Wiring control methods CR2-01 CR2-02  CR3-03 CR3-04 CR4-01 CR5-01 CR5-02 2 CR7-04(Optional)

Working current ≤800MA

Open/close time 5S(Optional)

Life time 70000 times

Valve Body material Brass

Actuator material Engineering Plastics

Sealing material FKM & PTFE

Actuator rotation 90°

Cable Length 0.5m,1.5m(Optional)

Environment temperature -15℃~50℃

Liquid temperature 2℃~90℃

Manual override  No

Indicator Yes No

Protection class IP67



The below flow direction  for selection :

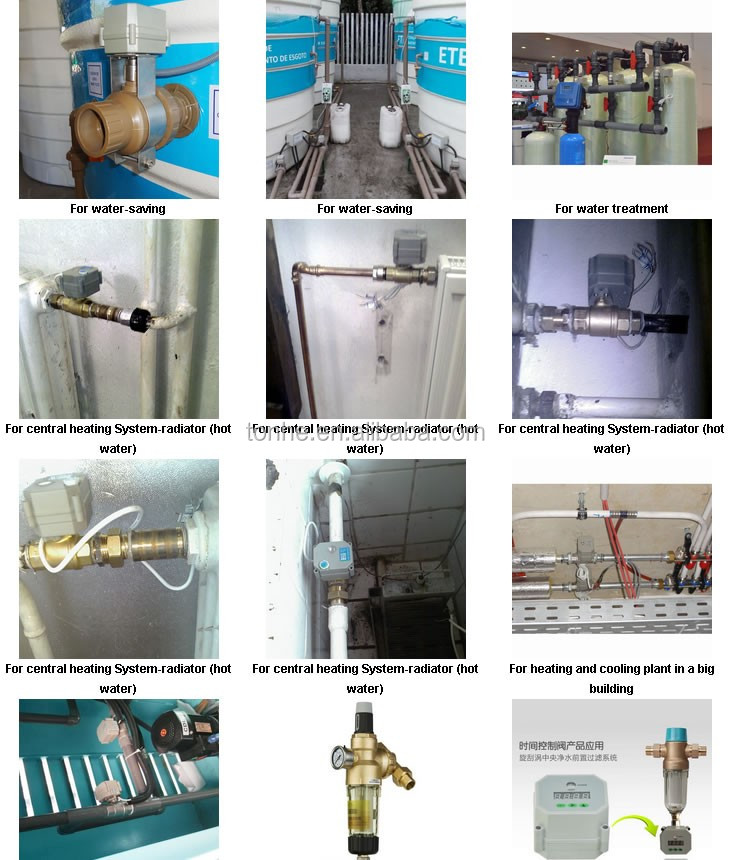

Application










TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .











Packaging & Shipping





Business Steps:

When you inquiry the product , pls confirm below technical info:

1. valve size , material ,

2. working voltage

3. wiring control method

4. cable length

FAQ

Q. what is your payment term?

 A: Paypal and T/T , payment in advance or 50% down payment,  pay off before shipment.



Q: Can I get samples from your factory?

A: Yes,you can order some samples for test.Usually 3 to 7 days.We shipping it as your require,like TNT,UPS,

FedEX and so on.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: If products have some quality problem, how would you deal with?

A: One year warranty, Lifetime technical service .We will responsible for all the quality problems, and buy PICC insurance for our products in 2016.
