3/4" inch DN20 DC5V/DV12V/DC24V 2 way brass male thread electric motorized shut off ball vavle with manual operat (A20-T20-B2-B)

FOB Reference Price:Get Latest Price
  • 1 - 199 Pieces
    US $25.00
  • 200 - 499 Pieces
    US $24.00
  • >=500 Pieces
    US $23.00
Contact Supplier Start Order
Loading... Place Sample Order
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Power:
Power
Material:
Brass
Temperature of Media:
High Temperature
Media:
Water Gas Oil
Port Size:
3/4"
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
T20-B2-B
Brand Name:
Tonhe
Application:
AM Control
Product Name:
motorized on-off ball vavle
Voltage:
DC5V/DC12V/DC24V/9-35V
Wiring diagram:
CR201, CR202, CR301, CR302, CR303, CR501, CR502, CR701
pressure:
0-10 Bar
Service life:
100000 times
Operating current:
Less than 80mA
Actuator torque:
2N.M
Open/close time:
≤5S
certification:
LVD,EMC,RHOS,IP67, PICC
Actuator:
grey or black color with manual operation
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
39*34*20CM 30pcs/carton
Port
Shanghai Ningbo
Lead Time :
within 3 working days

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service

 TONHE is a OEM and exporter of mini motorized shut off ball valve, proportional ball valve, wireless remote electric valve, and water leak alarm system, which are approved EMC,LVD,ROHS and SS304 valves passed NSF61-G certificated.

OEM 2 way Electric Plastic Motorized valve Flow Control PVC Ball Valve for 12V/24V/220V (A100-T32-P2-C)

3/4" inch DN20 DC5V/DV12V/DC24V 2 way brass male thread electric motorized shut off ball vavle with manual operat (A20-T20-B2-B)

T20-male male thread motorized valve2



If you want to buy, we need to confirm the detail as follows:
the valve: 2 way
Valve size: 3/4"
Valve material: brass
Voltage: DC5V,DC12V,DC24V,9-35V  which one is suit for you?
Wire control methods: CR201, CR202, CR301, CR302, CR303, CR501, CR502, CR701 which one is suit for you?
Screw thread: BSP or NPT which one is suit for you?
If you don't need the manual operation, the price is $2 lower than the price list.



Product Description

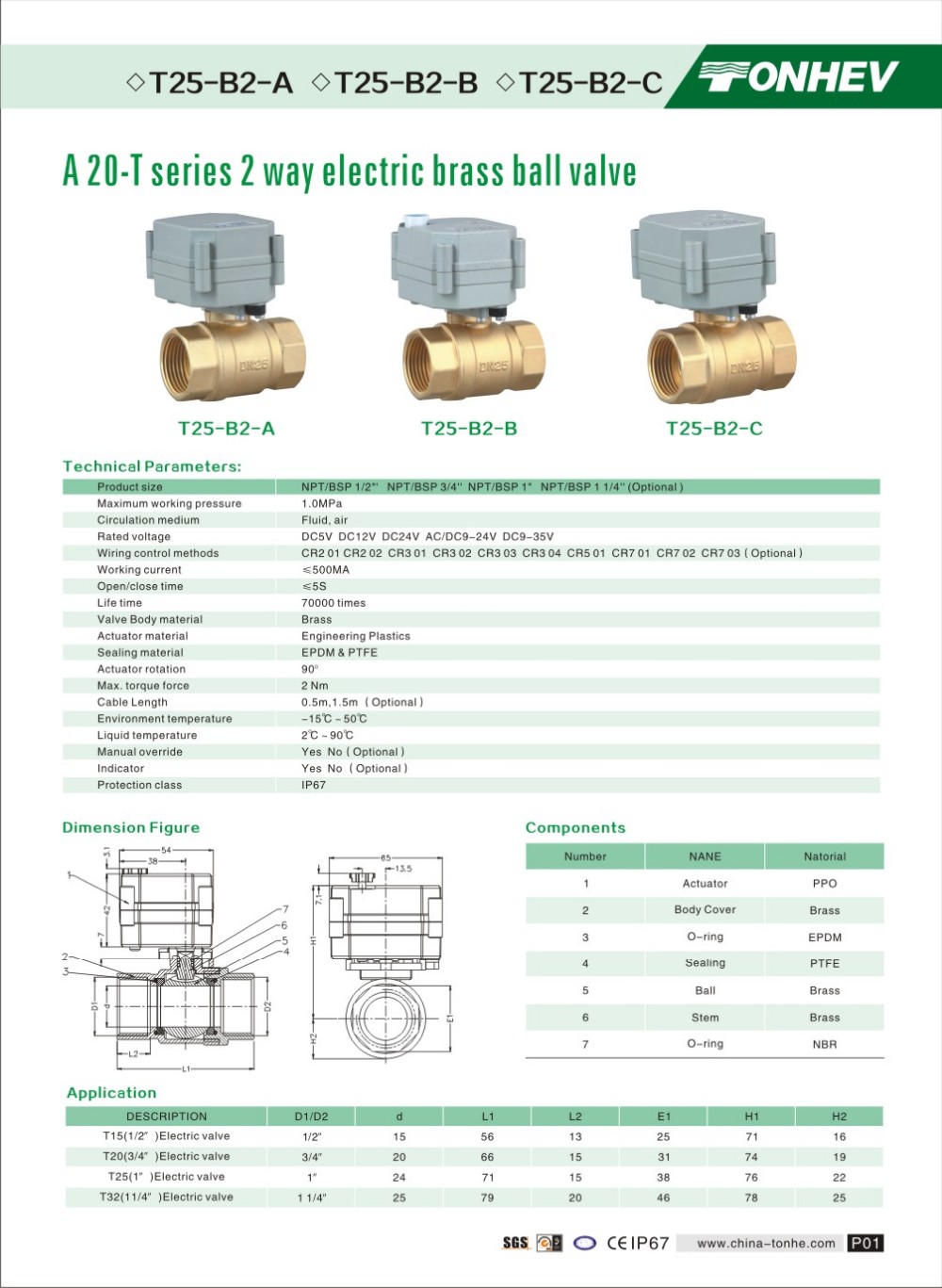

Product Specification

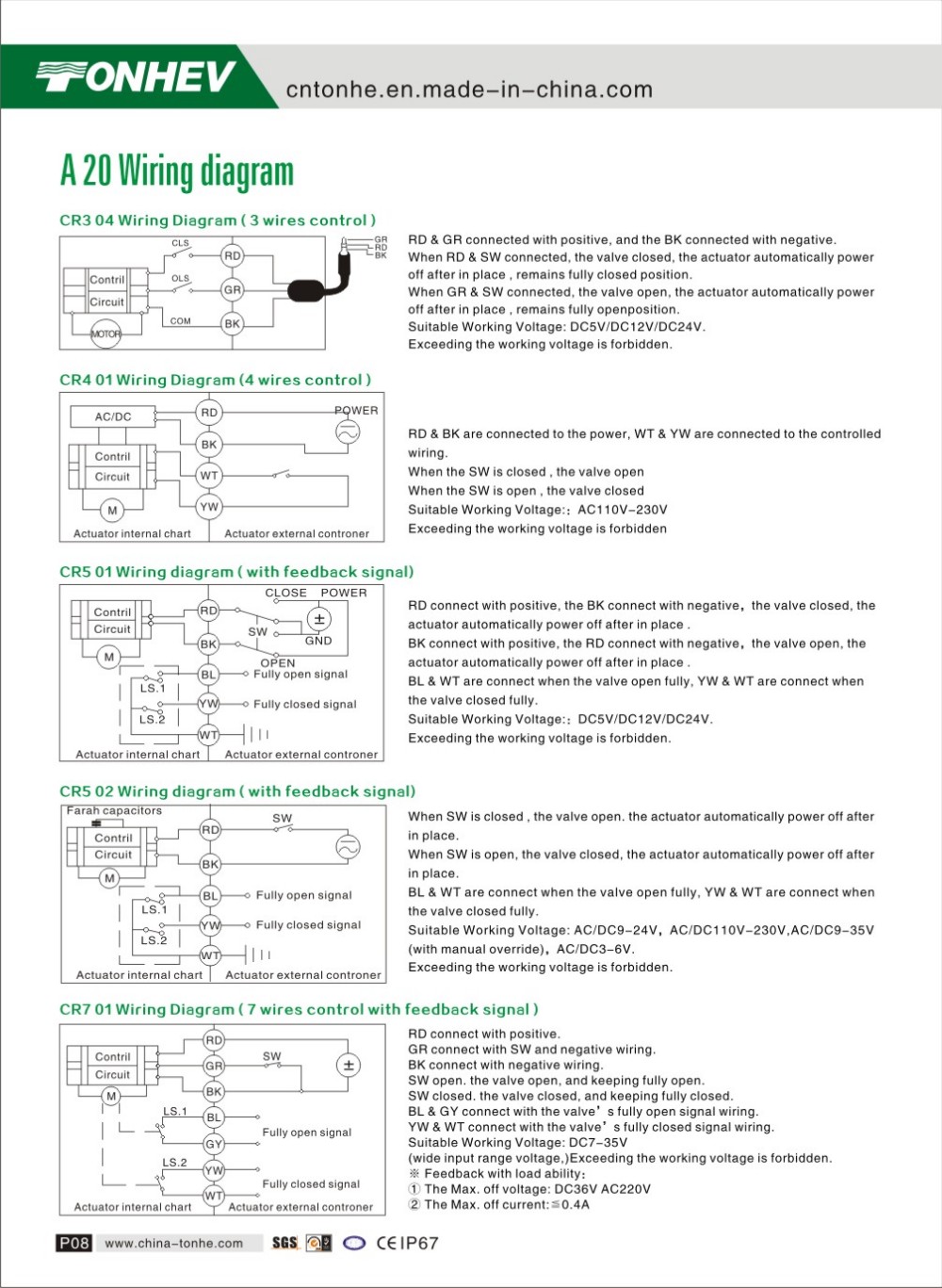

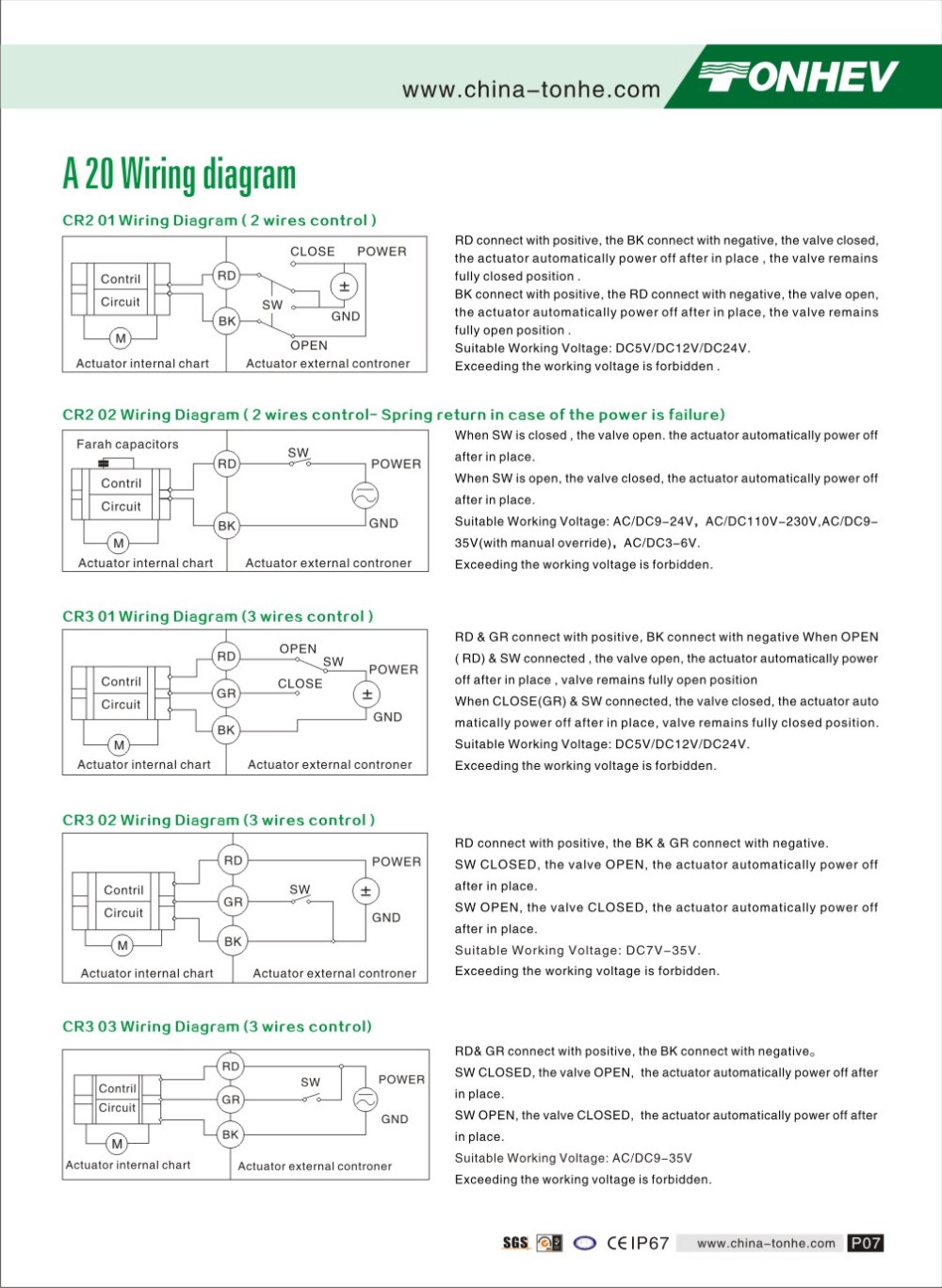

Wiring Diagram

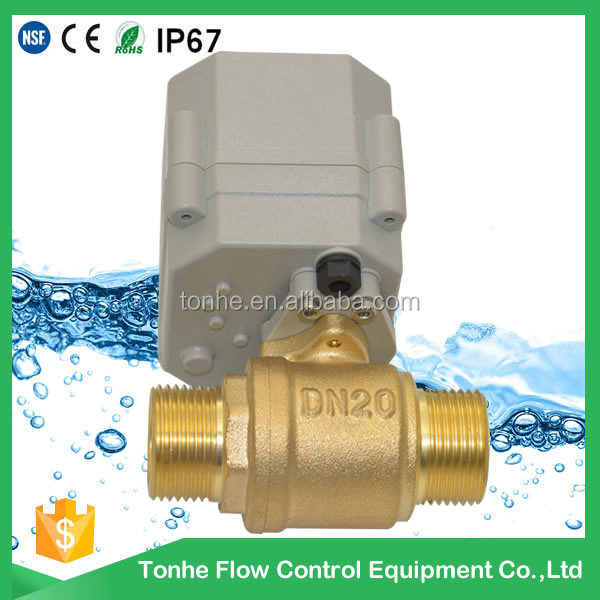

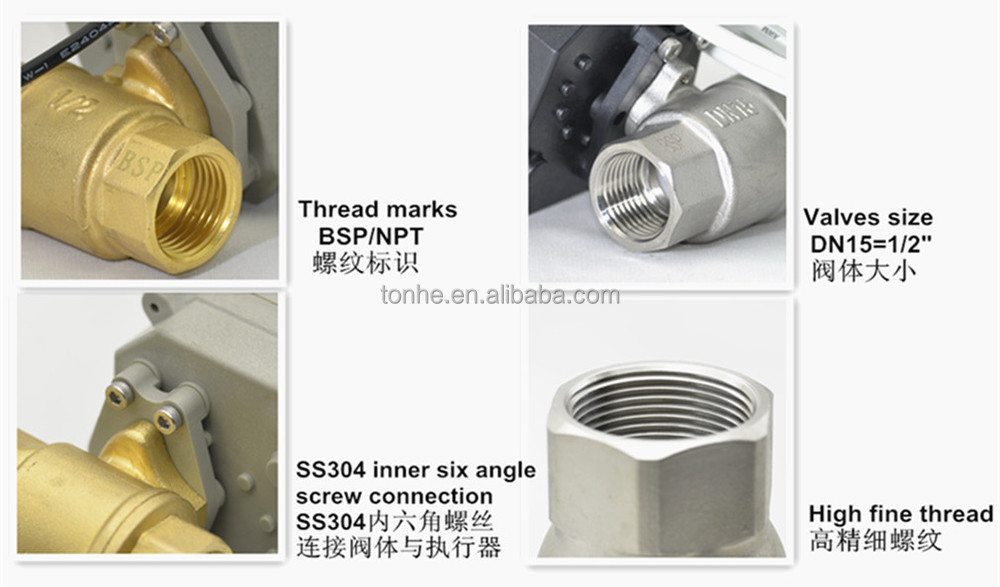

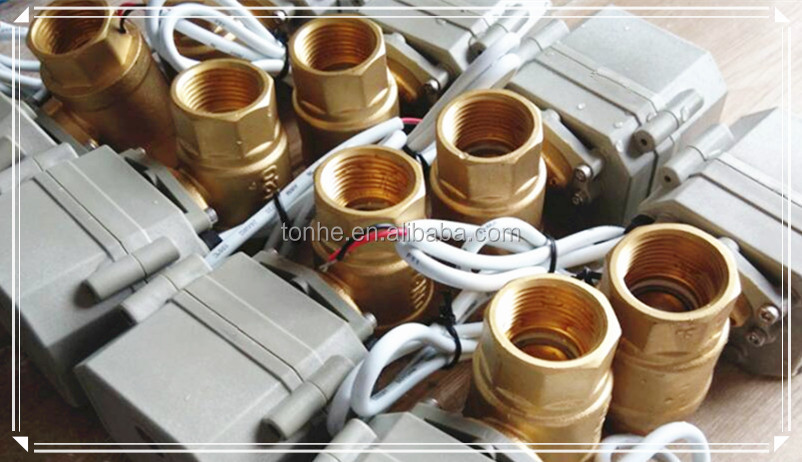

Product Photo Show

4zhang2
2 1413782253336_hz-fileserver-upload-02_826452



Dimension Figure

.jpg For occasions

1 IC card water meter, heat meter.

2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection

 Control signal 4-20mA intelligent modulating actuator 0-5V DN20mm 2 way 3/4" inch brass ball valve

Control signal 4-20mA intelligent modulating actuator 0-5V DN20mm 2 way 3/4" inch brass ball valve
