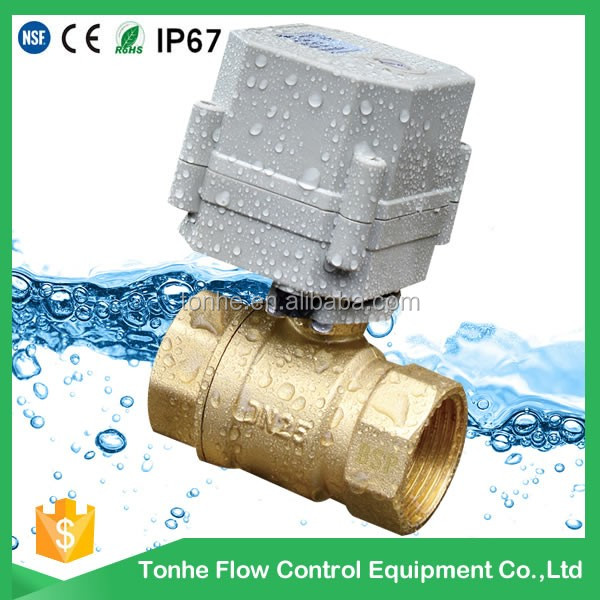

4-20mA and 0-5V control signal 2 way DN25mm proportioning valve 1" inch brass ball valve

FOB Reference Price:Get Latest Price
  • 1 - 499 Pieces
    US $37.00
  • >=500 Pieces
    US $35.00
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
10 bar
Power:
Electricity
Material:
Brass
Temperature of Media:
High Temperature
Media:
water oil air
Port Size:
1", 1"(1/4",3/8", 1/2," 3/4" )
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
M25-B2-C
Brand Name:
Tonhe
Application:
General
Product name:
4-20mA and 0-5V control signal 2 way DN25mm proportioning valve
Material::
Brass ( or Stainless Steel)
Voltage:
DC9-24V
Signal current:
4-20mA ,0-20mA,0-5V
Wiring diagram:
3 wire control, 5 wire control with feedback
Actuator torque:
2N.M
Service life:
100000 times
certification:
CE ROHS NSF61-G
Protection Class:
IP67
Supply Ability
Supply Ability:
4900 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
39*34*20CM 30pcs/carton
Port
Shanghai Ningbo
Lead Time :
5 days

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service

 Control signal 4-20mA intelligent modulating actuator 0-5V DN20mm 2 way 3/4" inch brass ball valve

Please confirm the detail as follows:
the valve: 2 way or 3 way
Valve size: 1/4",3/8",1/2",3/4",1”,1 1/4“
Valve material: brass,SS304
Voltage: DC9-24V
Control signal: 4-20mA,0-5V
Screw thread: BSP or NPT

 DN25-B2-Cinternal photo



2-way DN15 1/2" 12v DZR Brass motor control electric motorized operated Ball Valve

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .





company-detailour-customers



2-way DN15 1/2" 12v DZR Brass motor control electric motorized operated Ball Valvee-sale servic

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.











Dimension Figure



Product Characteristics:



1. Has compact size with smart shape, Perform reliably, has long life time.



2. The transmission system adopt new technology and made of metal gears with high output torque.



3. Multi-angle assembly, convenience for different space allocation requirements.



4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.



5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.



6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit



7. Motor & manual integration designed with the indicator.



8. High protection class, can be worked in moist conditions.



9. Passed CE certification and RoHS certification

 electric water valve application

Packaging & Shipping

PackagingPP bagcarton size of foreign trade in accordance with customerrequirements



                         A20 series packaging

packing .jpg

                           A100 series packaging
