wireless water leak detection system alarm detector sensor with 2 way motorized valve

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    US $70.00
  • 10 - 99 Sets
    US $69.00
  • >=100 Sets
    US $68.00
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
Stainless Steel
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
DN15 1/2''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
water leak detection
Brand Name:
Tonhe
Application:
General
Type:
C type
Certificate:
CE, NSF61,Rohs, IP67
Body material:
stainless steel
Color:
Customer's Request
Torque:
2 N.m
Voltage:
3VDC (2 . AA, 5 batteries)
Working current:
Typically 0.015mA, max 300.0mA
Open/close time:
≤7 Sec
Seal Material:
EPDM & PTFE
Product name:
wireless water leak detection system with motorized valve
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
10sets/carton
Port
ningbo
Lead Time :
5-15days
Product Description
wireless water leak detection system alarm detector sensor with 2 way motorized valve
TON_2922

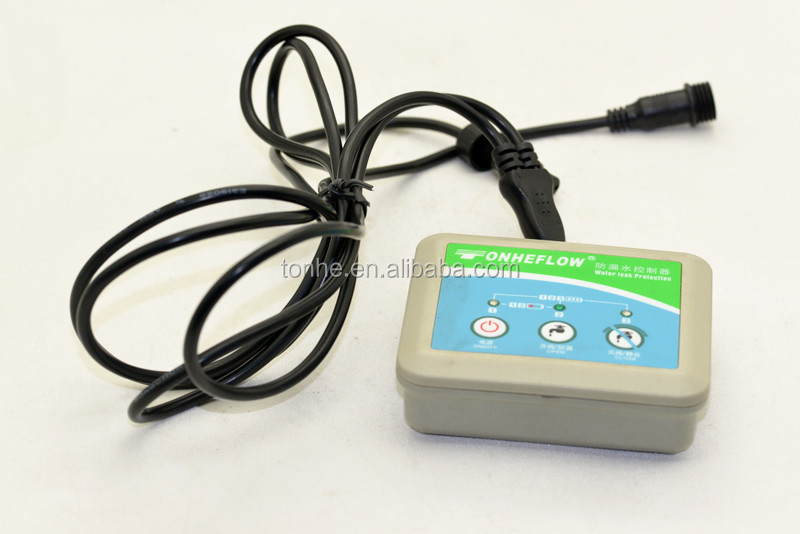

Main controller
TON_2898

wireless temperature sensor electric brass ball valve water leak detection  detector



Functions and Features

Valves close automatically when leakage, and alarm.

* Power Supply with 2 AA, 5 batteries.

Automatically alarm when power is lower, and valve close eight hours later

* Controller panel has three keys ( power key, valve on key , valve off key ) and three indicator lights ( power indicator, on - off indicator)

* Easy to install.

* Suitable for water purifiers, protective faucet, washing machine, filter or water softener and other equipment as leakage protection.

* Sensing controller is fully sealed, moisture-proof design, improve the life of battery and stability of the product .



Technical parameters

Operating voltage: 3VDC (2 . AA, 5 batteries)

Operating Current: Typically 0.015mA, max 300.0mA

Cable length: 1.0M

Connector Spec: 1 / 2 "(BSP/NPT 1/4" 3/8" 3/4" 1")   Optional

Valve Body material : Brass  (  Stainless steel 304  , Nickel plated Brass ) Optional

Ambient temperature: -20℃ to 80℃

Working pressure: 1.0Mpa

Leakage detection:  Put the metal face of sensor controller down the place most likely leaky places, such as near the water purifier











wireless water leak solution


3 pcs
sensors metal face down flat in your need to prevent leakage of 3 different places, detection of leakage when the valve automatically shut off, and issued a warning sound.

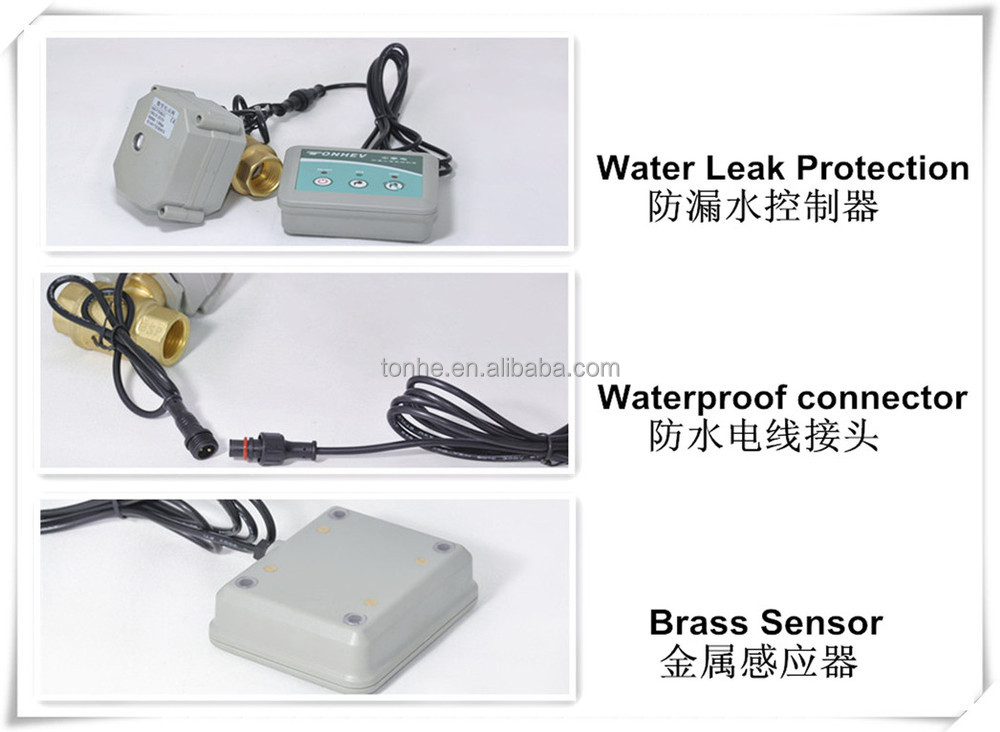

Controller

Sensors

Motorized valve

Number of sensors

1 pcs

1-3pcs optional

1 pcs

working current

Standby 0.015mA, the maximum value of 500MA

Standby 0.015mA

no power need

Motorized valve size

----

----

DN8-25
1/4”-1”

valve material

----

----

SS304
SS316
brass

Environmenttemperature

0℃~40℃

0℃~40℃

-15℃~50℃

fluid temperature

----

----

2℃~90℃

Protection class

IP67

IP67

IP67



* Sensors can be with 1-3pcs, use 433 radio frequency wireless connections, battery powered, no additional wiring and sockets.
* When controller, sensors power shortage, sub level automatic alarm or automatic shut off valve.
* controller, sensors can independently control the valve open or close.
* sensor controller fully sealed, moisture proof design, increase the life of battery, and make the product more stable
* Suitable for water purifier, Water Leakage kitchen, bathroom Water Leakage, washing machine, water softener filter or Water Leakage room, Water Leakage warehouse.





Controller description
* controller has external power supply, there are spare batteries,  normally working need power adapter, low power mode.
* a controller can be paired with 3 sensors.
* after the boot in low power mode, to accept the signal of the sensor, control valve open or close.
* in the open valve condition, no alarm, automatic open and close valve every 80 hours once time



Sensor description

* After the success of the matching, automatic monitoring mode, each 1 second detection of water immersion, each 10 seconds to detect power.

* when the sensor detects the Water leakage, sentsignal to the controller, meanwhile the sensor to sound and light alarm for 20 seconds (3 indicator lights flashing, buzzer sound), controller receives the signal and closes valve.

* sensor detects low battery power, sound and light alarm (the power indicator lights flashing, buzzer), the valve self-closing after20s ; if not replace the battery, repeated sound and lightalarmafter20 minutes.



Controller and sensor pairing
1. Controller, press the open valve button, then press the power button on controller, buzzer rang get into pairing mode. (total 3 sensors can be paired, from left to right, each light means a sensor, When matching, the first pair is completed, automatically jump to the next pairing, press close valve button, it can delete All matching information, then you pairing again.

2.Sensor, press the power button sensor, it can automatically search the new controller signal pairs. If no new controller matched within 5 seconds, then use the controller finally matched, if original is not matched, then sensors work in stand-alone mode, will not send alarm information.




DN20 CR201 with indicator brass sensor water leak detection system

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


DN20 CR201 with indicator brass sensor water leak detection system

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
