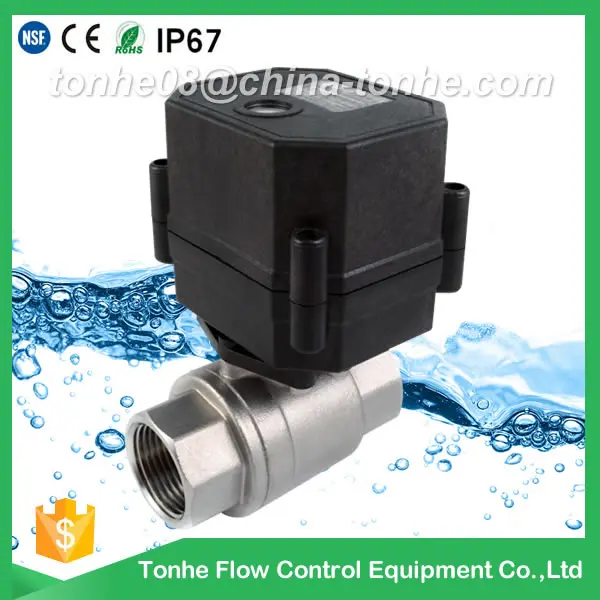

1/2" DN15 2-way full port normally closed SS304 220v 240v motorized valve

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    US $27.00
  • 10 - 99 Pieces
    US $26.00
  • >=100 Pieces
    US $25.00
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
electric valve
Material:
Stainless Steel
Temperature of Media:
High Temperature
Media:
Water
Port Size:
DN15 1/2''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
electric ball valve
Brand Name:
Tonhe
Application:
General
Type:
normally closed
Certificate:
CE, Rohs, IP67
Body material:
Stainless Steel SS304
wire control:
CR202
Torque:
2 N.m
Voltage:
AC240v 220v
Working current:
≤80MA
Open/close time:
≤5 Sec
Seal Material:
EPDM & PTFE
Product name:
1/2" DN15 2-way full port normally closed SS304 220v 240v motorized
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
30pcs/carton,39*34*20
Port
Ningbo
Lead Time :
5-20days
Product Description



1/2" DN15 2-way full port normally closed SS304 220v 240v motorized  valve

Size  1/2"
Material Stainless Steel
Fields of applications Water
Maximum working pressure 1.0MPa
Rated VoltageAC220v 240v
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment


A20-T20-S2-C-240v

Technical Parameters:

Model: A20-T15-S2-C
Size: 1/2''
Internal diameter: 15mm
Rated Voltage: AC220V,AC240V (pls confirm the voltage)
Working current: less than 80MA
Open/close time: less than 5S
Wiring control: CR2-02
Life time: 70000 times
Manual override: NO
Indicator: YES
Max. working pressure: 1.0MPa
Actuator material: Engineering Plastics
Sealing material:EPDM & PTFE
Vale body material: SS304
Max. torque force: 2 Nm
Cable length: 0.5m
Actuator rotation: 90 degree
Liquid temperature: 2 Celsius-90 Celsius
Environment temperature: -15 Celsius-50 Celsius
Protection class: IP67





Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, cable length 0.5M? 1.5M?


 Wiring Diagram

1/2

1/2

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


1/2

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


1/2


1/2
1/2


1/2

Packaging & Shipping

 1/2

1/2



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.



Q: What is motorized valve BSP thread, where will NPT thread usually used?

A: BSP thread and GB G thread is the same thread, China mainland user needs with BSP thread, Asia and the European region market are mainly used BSP, NPT thread is usually used in South America, North America, Singapore is also use NPT, I know it several days ago.

But before the customer orders, it's best to ask that what kind of thread they needed, to satisfy different requirements.
