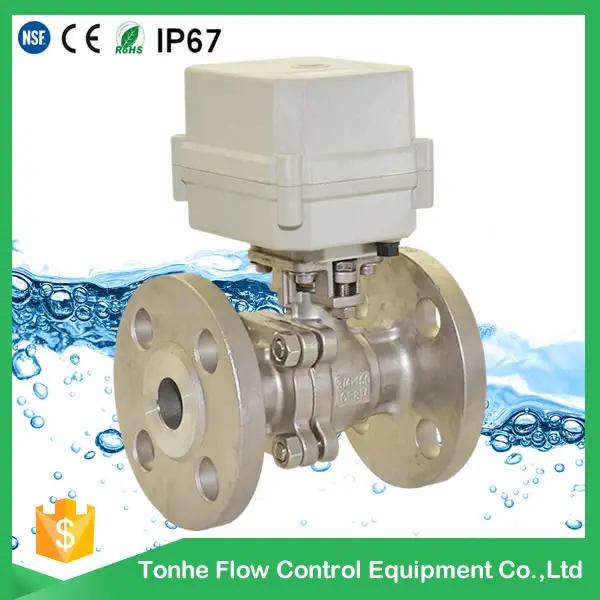

DN15 1/2" SS304 electric flange ball valve 2 way mororized ball valve

FOB Reference Price:Get Latest Price
US $75-95 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
electric valve
Material:
Stainless Steel
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
DN15 1/2''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
electric flange ball valve
Brand Name:
Tonhe
Application:
General
Type:
C Type
Certificate:
CE, NSF61,Rohs, IP67
Body material:
304 Stainless Steel
Color:
Customer's Request
Torque:
10 N.m
Voltage:
DC12V/DC24V/AC110-230V
Working current:
≤800MA
Open/close time:
≤15 Sec
Seal Material:
EPDM & PTFE
SupplyAbility
SupplyAbility:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
5pcs/carton
Port
ningbo
Lead Time :
3-10days
Product Description
DN15 1/2" SS304 electric flange ball valve 2 way mororized ball valve
Size  1/2" ,3/4", 1"
Material Stainless Steel
Fields of applications Water
Maximum working pressure 3.0MPa
Rated VoltageDC12V/DC24V/AC110-230V (pls confirm the voltage)
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment



Technical Parameters:

Model: A100-T15-S2-C

Size: 1/2'' 3/4" 1"

Body connections: Flange

Working current: less than 1A

Life time: 70000 times

Manual override: NO

Indicator: yes

Max. working pressure: 3.0MPa

Actuator material: Engineering Plastics

Sealing material:EPDM & PTFE

Vale body material: SS304

Max. torque force: 10 Nm

Cable length: 50cm

Actuator rotation: 90 degree

Liquid temperature: 2 Celsius-120 Celsius

Environment temperature: -15 Celsius-50 Celsius

Protection class: IP67

   2016 RoSH 1/2 inch electric automatic water valve UPVC actuator ball valve2016 RoSH 1/2 inch electric automatic water valve UPVC actuator ball valve


Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length



1/2

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


1/2

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


1/2


1/2
1/2


Please confirm which the thread of valve you need,BSP or NPT?





HTB1P8_bLpXXXXcyXFXXq6xXFXXXr



title-serviceHTB1y.3JGVXXXXa.aXXXq6xXFXXXt



Business Steps:

When you inquiry the product , pls confirm below technical info:

1. valve size , material ,

2. working voltage

3. wiring control method

4. cable length

FAQ

Q. what is your payment term?

 A: Paypal and T/T , payment in advance or 50% down payment,  pay off before shipment.

Q: Can I get samples from your factory?

A: Yes,you can order some samples for test.Usually 3 to 7 days.We shipping it as your require,like TNT,UPS,

FedEX and so on.

Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.

Q: If products have some quality problem, how would you deal with?

A: One year warranty, Lifetime technical service .We will responsible for all the quality problems, and buy PICC insurance for our products in 2016.
